Profile code
An approved technical-office code, reviewed before publication.
Frankfort 70 · 10111549102
Casement door sash
The casement door sash of the Frankfort 70 system, 86 mm deep for the heavier door loads.
Explore the product in 3DCAD VERIFIED
10111549102PRODUCT CONFIGURATOR
See the profile in colour.
Colour is applied only to the UPVC body material. Every other model part remains unchanged.
Preparing the model…
VERIFIED · 1011154910210111549102
Verified technical data
- Profile width
- 70 mm
- Profile height
- 86 mm
- Bar length
- 6000 mm
- Verified use
- Frankfort 70 casement — door sash
QUALITY ASSURANCE
Verified before publication.

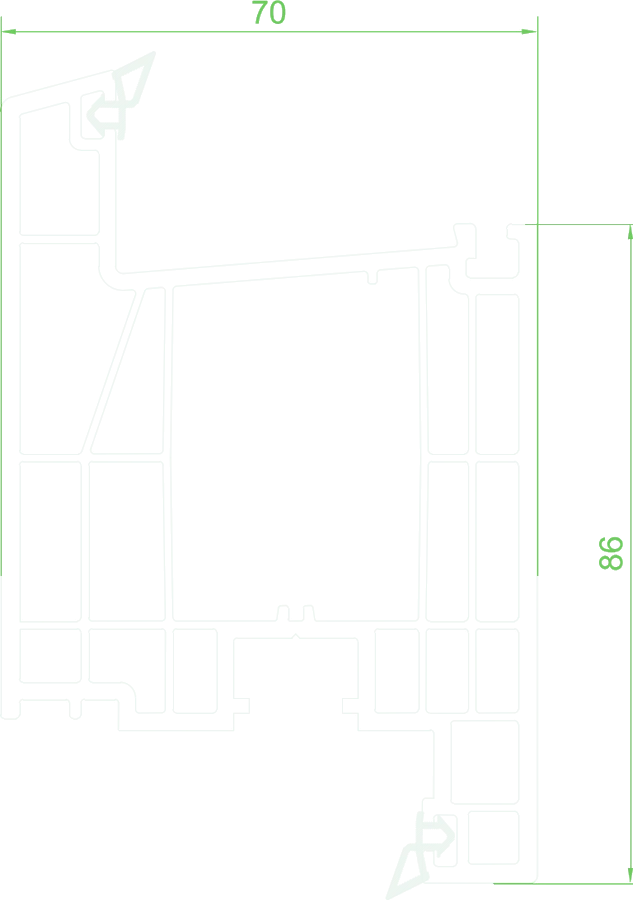

Technical drawing
Linked only to profile code 10111549102.
3D model
The UPVC body material is isolated from other geometry.
Price and availability
A reference price; the Premier team confirms availability and the final price before production.
