Profile code
An approved technical-office code, reviewed before publication.
Frankfort 70 · 10111550093
Casement frame without overlap
The frame-without-overlap profile of the Frankfort 70 system.
Explore the product in 3DCAD VERIFIED
10111550093PRODUCT CONFIGURATOR
See the profile in colour.
Colour is applied only to the UPVC body material. Every other model part remains unchanged.
Preparing the model…
VERIFIED · 1011155009310111550093
Verified technical data
- Profile width
- 70 mm
- Profile height
- 45 mm
- Bar length
- 6000 mm
- Verified use
- Frankfort 70 casement — frame without overlap
QUALITY ASSURANCE
Verified before publication.

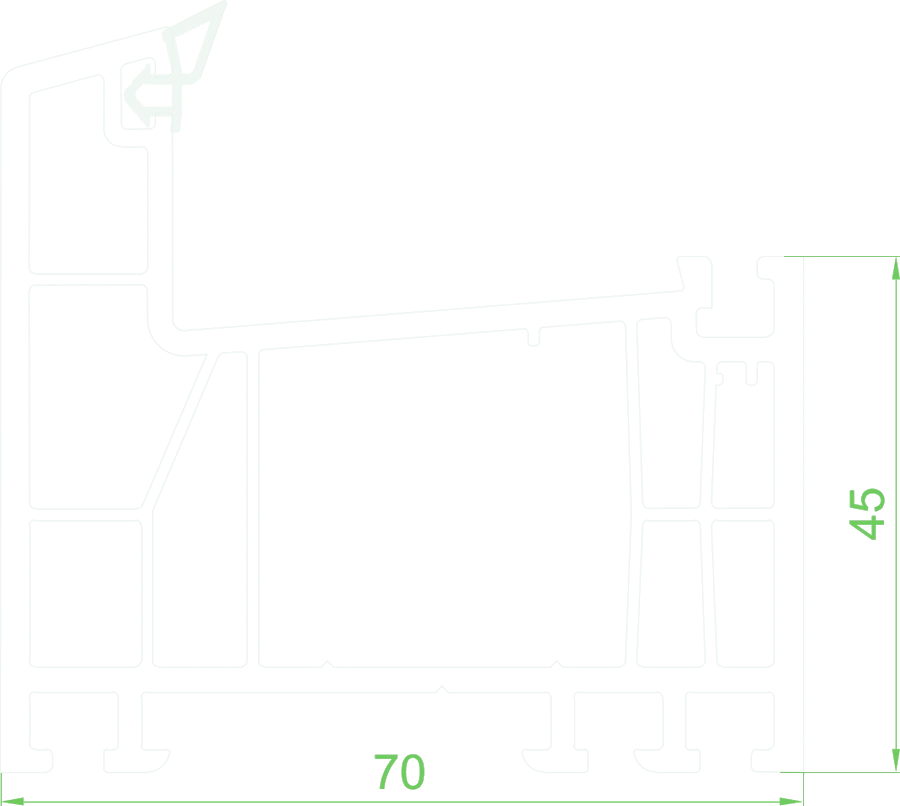

Technical drawing
Linked only to profile code 10111550093.
3D model
The UPVC body material is isolated from other geometry.
Price and availability
A reference price; the Premier team confirms availability and the final price before production.
